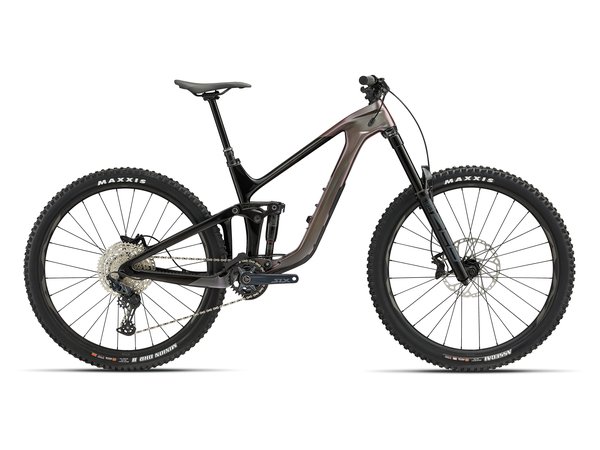

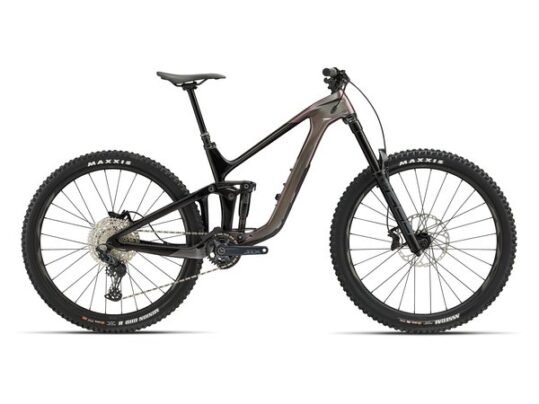

Reign Advanced Pro 2 Orion Nebula / Carbon

This all-new composite chassis is built strong, light and fast for Giant enduro pros. A new suspension setup been developed, tested and raced at the highest levels. And more adjustability lets you tackle technical trails just the way you like.

Race-bred suspension
A new Maestro rear suspension system with longer travel (160mm) was developed and tested under the extreme conditions of Enduro World Series races. The trunnion mount shock has a longer stroke (62.5mm compared to 60mm on the previous generation). And the Advanced Forged Composite upper rocker arm adds stiffness and lowers overall weight.

Adjustable enduro geometry
New flip chip technology lets you switch between three settings depending on the terrain. You can select a 63.5, 63.9 or 64.2-degree head angle and corresponding 78.3, 78.7 or 79-degree seat tube angle, resulting in a 35, 30 or 25mm bottom bracket drop (size medium) to fine-tune handling for trail conditions, riding style and rear-wheel size.

Rear wheel options
Riders can choose either a 29- or 27.5-inch rear wheel, paired with a 29-inch front wheel. The larger 29-inch option improves stability and roll-over capabilities, while the 27.5 option delivers a more agile, snappier feel. It’s a quick and easy change to adjust the bike’s handling and feel.

• Sizes:- S, M, L, XL
• Colours:- Gloss Orion Nebula/Carbon
• Frame:- Advanced-Grade Composite front and rear triangles, Advanced Forged Composite rocker link, 160mm Maestro suspension, OverDrive (1 1/8″ – 1 1/2″), BB89.5, UDH, 12x148mm thru-axle, 27.5 or 29-inch rear wheel compatible, flip chip – Maestro 3, integrated downtube storage, 2.5″ max tyre size, 36t max chainring size, 3M tailgate protector, downtube and chainstay protection
• Fork:- RockShox ZEB Select, 170mm, Charger RC, 15×110 Maxle Stealth, 44mm offset
• Shock:- RockShox Deluxe Select+, 205/62.5mm
• Handlebar:- Giant Contact SLR TR35, composite, 800x35mm, 20mm rise
• Grips:- Giant Tactal Pro Single S:120mm, M:120mm, L:130mm, XL:130mm
• Stem:- Giant Contact SL 35 S:40mm, M:40mm, L:40mm, XL:40mm
• Seatpost:- TranzX travel-adjustable dropper, remote S: 120-150mm travel / 30.9 x 459mm M: 140-170mm travel / 30.9 x 499mm L: 170-200mm travel / 30.9 x 525mm XL: 170-200mm travel / 30.9 x 525mm
• Saddle:- Giant Romero SL
• Pedals:- N/A
• Shifters:- Shimano SLX SL-M7100, 1×12
• Front Derailleur:- N/A
• Rear Derailleur:- Shimano SLX RD-M7100
• Brakes:- Shimano Deore BR-MT520, hydraulic, Shimano RT-66 rotors [F]220mm, [R]203mm
• Brake Levers:- Shimano Deore BL-MT501
• Cassette:- Shimano Deore M6100, 10x-51T
• Chain:- KMC X12, w/ Missing Link
• Crankset:- Shimano SLX, 32t, 55mm chainline S:165mm, M:170mm, L:170mm, XL:170mm
• Bottom Bracket:- Shimano, press fit
• Rims:- Giant AM 29, ETRTO: 30-622, tubeless ready (TL tape and valve included), alloy
• Hubs:- Alloy, sealed [F] Giant, loose ball bearing, 6-bolt [R] Giant, cartridge bearing, Micro Spline driver, 6-bolt
• Spokes:- Sapim Leader
• Tyres:- [F] Maxxis Assegai 29×2.5 WT, 3C MaxxTerra, EXO+, TR [R] Maxxis Minion DHR II 29×2.4 WT, 3C MaxxTerra, DD, TR tubeless
• Extras:- Factory tubeless set up. Tubeless kit (2x60ml Giant sealant, valve tool, instruction) 2.5″ max tyre size, 36t max chainring size, MRP AMG CS chain guide, 3M tailgate protector, downtube and chainstay protection, internal DT storage bag
