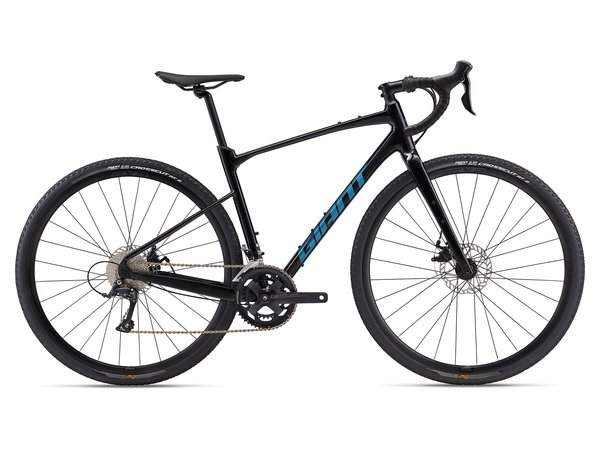

Revolt 2 Metallic Black

Ride roads, gravel or dirt with this versatile aluminium all-rounder. A composite fork gives it a smooth ride, and a flip chip lets you adjust wheelbase and tire clearance.

Confident handling
Frame is designed with endurance positioning and shorter chainstays for precise handling, agility and control. A longer reach, shorter stem and lower bottom bracket drop improves stability on rugged terrain.

Tuned compliance
Dropped seatstays with thin tubing absorb road shocks and vibrations. The D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.

Adaptable to the terrain
A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling and acceleration, or long for improved stability at speed. The long setting allows for larger diameter tyres up to 53mm. You can choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.

• Sizes:- S, M, M/L, L, XL
• Colours:- Gloss Metallic Black/Sea Sparkle & Gloss Bay Leaf/Panther
• Frame:- ALUXX-grade aluminium, 12x142mm thru-axle, disc, flip chip dropout
• Fork:- Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc
• Shock:- N/A
• Handlebar:- Giant Contact XR Ergo-Control, 31.8mm
• Grips:- cork tape with gel
• Stem:- Giant Sport, 8-degree
• Seatpost:- Giant D-Fuse, alloy, 14mm offset
• Saddle:- Giant Approach
• Pedals:- PEDALS NOT SUPPLIED
• Shifters:- Shimano Sora, 2×9
• Front Derailleur:- Shimano Sora
• Rear Derailleur:- Shimano Sora, long cage
• Brakes:- Tektro MD-C550 mechanical, Giant MPH rotors [F]160mm, [R]160mm
• Brake Levers:- Shimano Sora
• Cassette:- Shimano HG400, 11×34
• Chain:- KMC X9 with Missing Link
• Crankset:- FSA Vero Pro, 32/48
• Bottom Bracket:- cartridge
• Rims:- Giant S-X2 Disc wheelset, alloy, 25mm inner rim width
• Hubs:- Giant alloy, 12mm thru-axle
• Spokes:- Stainless steel
• Tyres:- Giant CrossCut AT 2, 700x38c, tubeless
• Extras:- Factory tubeless set up, 53mm max tyre size in “long” flip chip position, 45mm max tyre size in “short” flip chip position
• Max Chainring Size:- SRAM Wide 2x 43-30, 1x 46T. SRAM Road 2x 52-39, 1x 52T. Shimano Road 2x 52-36. GRX 2x 48-31, 1x 42T
