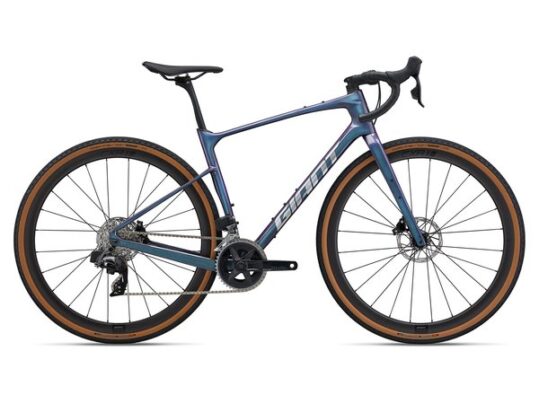

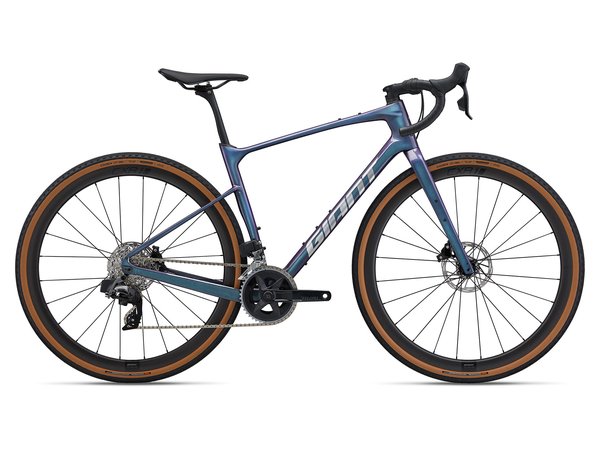

Revolt Advanced Pro 1 Blue Dragonfly

Fast gravel is fun gravel. The bike of choice for Giant gravel racing pros, this superlight speedster delivers a smooth ride over rugged roads, and is adaptable to all types of conditions and riding styles.

Lightweight efficiency
Advanced composite frame and Advanced SL composite fork save a combined 200g compared to previous generation. Updated geometry includes a lower bottom bracket, longer reach, and steeper head tube angle for improved acceleration and climbing.

Tuned compliance
A lowered seatstay junction with smaller diameter tubes absorbs road shocks and vibrations. The Contact SLR D-Fuse carbon handlebar and D-Fuse seatpost work as a system to optimise compliance without sacrificing stiffness while cornering, sprinting and cl

Adaptable to the terrain
A flip chip on the rear dropout adjusts the wheelbase short for quicker handling, or long for improved stability at speed. The long setting also allows for larger diameter tyres up to 53mm. You can choose the included D-Fuse seatpost for maximum complianc

• Sizes:- S, M, M/L, L, XL
• Colours:- Blue Dragonfly
• Frame:- Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout
• Fork:- Advanced SL-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc
• Shock:- N/A
• Handlebar:- Giant Contact SLR XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
• Grips:- Stratus Lite 3.0
• Stem:- Giant Contact, 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
• Seatpost:- Giant D-Fuse SLR, composite, -5/+15mm offset
• Saddle:- Giant Approach SL
• Pedals:- N/A
• Shifters:- SRAM Rival eTap AXS, 2×12
• Front Derailleur:- SRAM Rival eTap AXS
• Rear Derailleur:- SRAM Rival eTap AXS
• Brakes:- SRAM Rival eTap AXS hydraulic, SRAM PaceLine rotors [F]160mm, [R]160mm
• Brake Levers:- SRAM Rival eTap AXS hydraulic
• Cassette:- SRAM Rival, 12-speed, 10×36
• Chain:- SRAM Rival D1
• Crankset:- SRAM Rival D1 DUB, 30/43 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
• Bottom Bracket:- SRAM DUB, press fit
• Rims:- Giant CXR 1 Carbon Disc WheelSystem, [F] 35mm, [R] 35mm
• Hubs:- [F] Giant AR alloy, CenterLock, 12mm thru-axle, [R] Giant AR alloy, DT350 36t ratchet driver, CenterLock, 12mm thru-axle
• Spokes:- Sapim CX-Ray
• Tyres:- CADEX AR, 700x40c, tubeless
• Extras:- tubeless prepared, 53mm max tyre size in “long” flip chip position, 45mm max tyre size in “short” flip chip position
