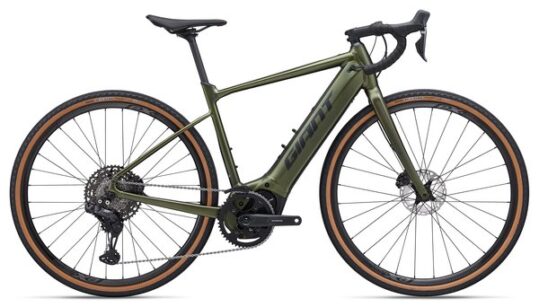

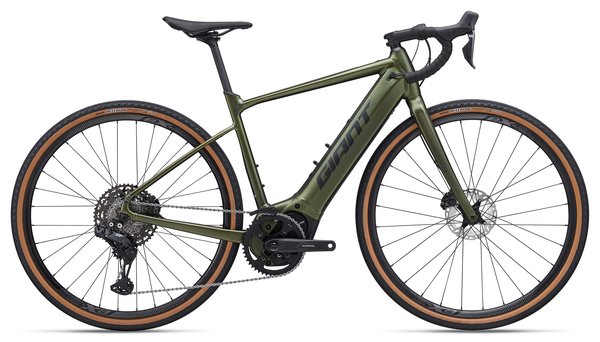

Revolt E+ 1 Phantom Green

From rough roads to gravel, dirt and mixed terrain adventures, this versatile drop bar E-bike gives you the power to ride farther and faster on any route you can dream up.

Unlimited adventure
New SyncDrive EP6 motor powered by Shimano, lightweight ALUXX SL aluminium frame, smooth-riding tubeless tyres and a comfortable D-Fuse seatpost give you the ability to ride any road, any route.

Powerful, integrated battery
EnergyPak Smart Compact 500 battery delivers long-distance pedalling support and is seamlessly integrated into the frame for a sleek overall profile.

System simplicity
With the press of the simple RideControl Go on/off button on the top tube, you are ready to go. The Smart Assist mode keeps you spinning without any worries. ANT+ capability further allows you to connect a bike computer of choice.

• Motor:- Shimano EP600, 85Nm
• Controller:- Mode support switch from Shimano GRX STI
• Display:- Giant RideControl GO, frame-integrated LED consoleOptional wireless ANT+ display
• Battery:- Giant EnergyPak 500Wh Campact, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production Giant EnergyPak Plus 250 range extender compatible
• Charger:- Giant EnergyPak 4A smart charger compact, 60% charge in 2:00h
• Connectivity:- Giant RideControl App enabled ANT+ wireless display signal with e-bike profile
• Sizes:- S, M, ML, L, XL
• Colours:- Gloss Phantom Green
• Frame:- ALUXX SL aluminium
• Fork:- Advanced-grade composite,12×100 thru-axle
• Handlebar:- Giant Contact XR D-Fuse 31.8 alloy 5° back sweep
• Grips:- Velo cork tape with gel
• Stem:- Giant Contact 31.8 alloy
• Seatpost:- Giant D-Fuse SL, composite
• Saddle:- Giant Approach
• Pedals:- Aluminium Platform
• Shifters:- Shimano Ultegra Di2 1×11
• Front Derailleur:- N/A
• Rear Derailleur:- Shimano XT Di2
• Brakes:- Shimano BR-R8170, hydraulic disc, 160mm [F/R]
• Brake Levers:- Shimano ST-R8170 hydraulic disc
• Cassette:- Shimano CS-LG700-11, 11-50t
• Chain:- KMC eGlide NP/BK, e-bike optimised
• Crankset:- Shimano FC-EM600 crankarm Shimano SM-CRE80-R, 47T chainring
• Bottom Bracket:- N/A
• Rims:- Giant eX 2, Tubeless Ready, 700c Aluminium
• Hubs:- Giant Performance Tracker Road, Sealed Bearing
• Spokes:- Sapim E-Lite [r] Race [f]
• Tyres:- Maxxis Receptor, EXO, 700x40c, Tubeless
• Extras:- Tubeless kit (liquid, valves, levers, manual, tool)
